Men on Boats

Year:
2025

Producing Organization:
Michigan Technological University

Director:
Nich Radcliff

Role:
Technical Director

Scenic Designer:
Keny Cyr

Projections Designer:
Terry Jachimiak II

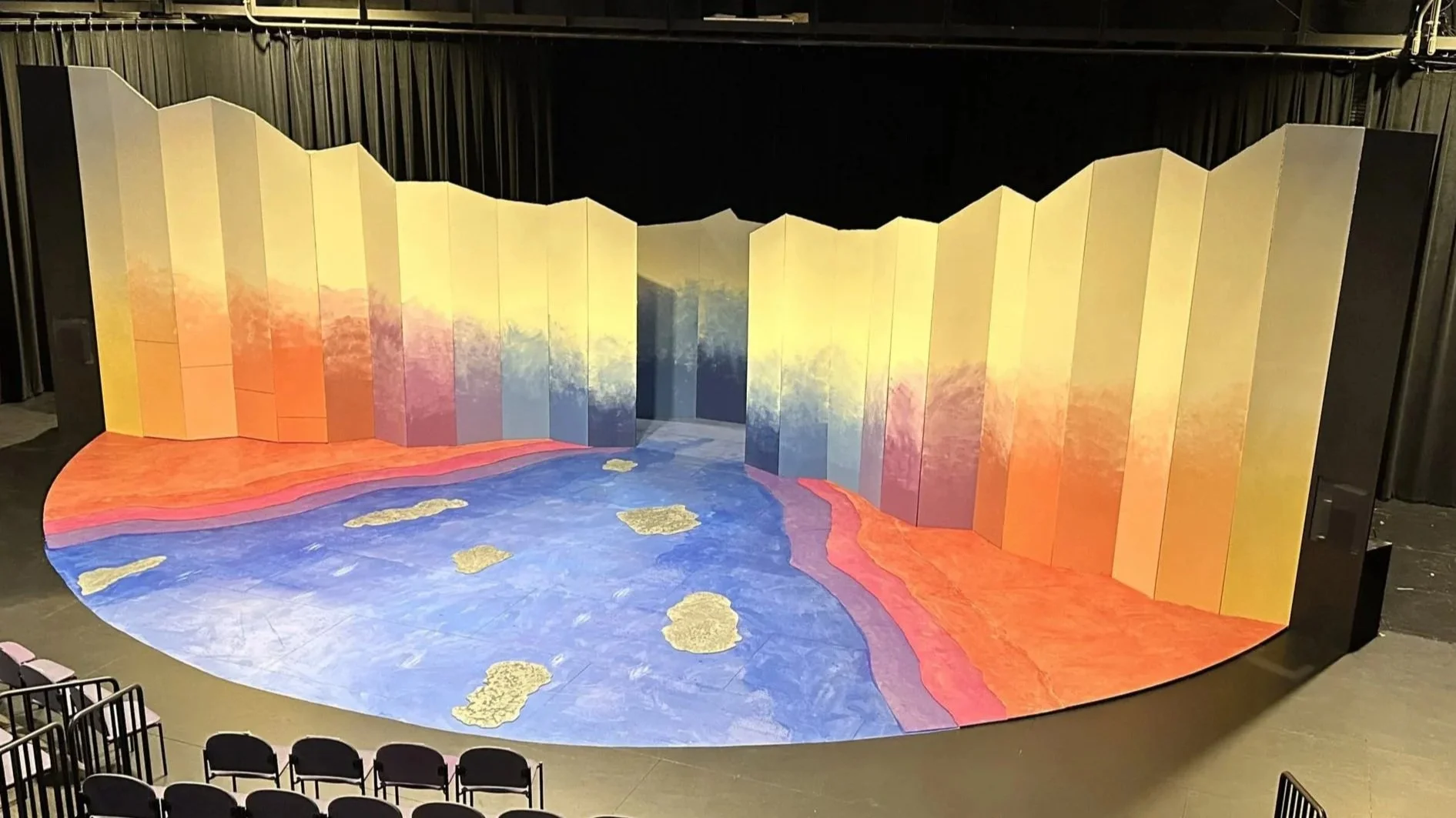

Colorful stage set with a large, curved backdrop featuring a landscape of trees and sky, with a painted floor resembling a river and land, in a theater with empty black chairs.

Flats

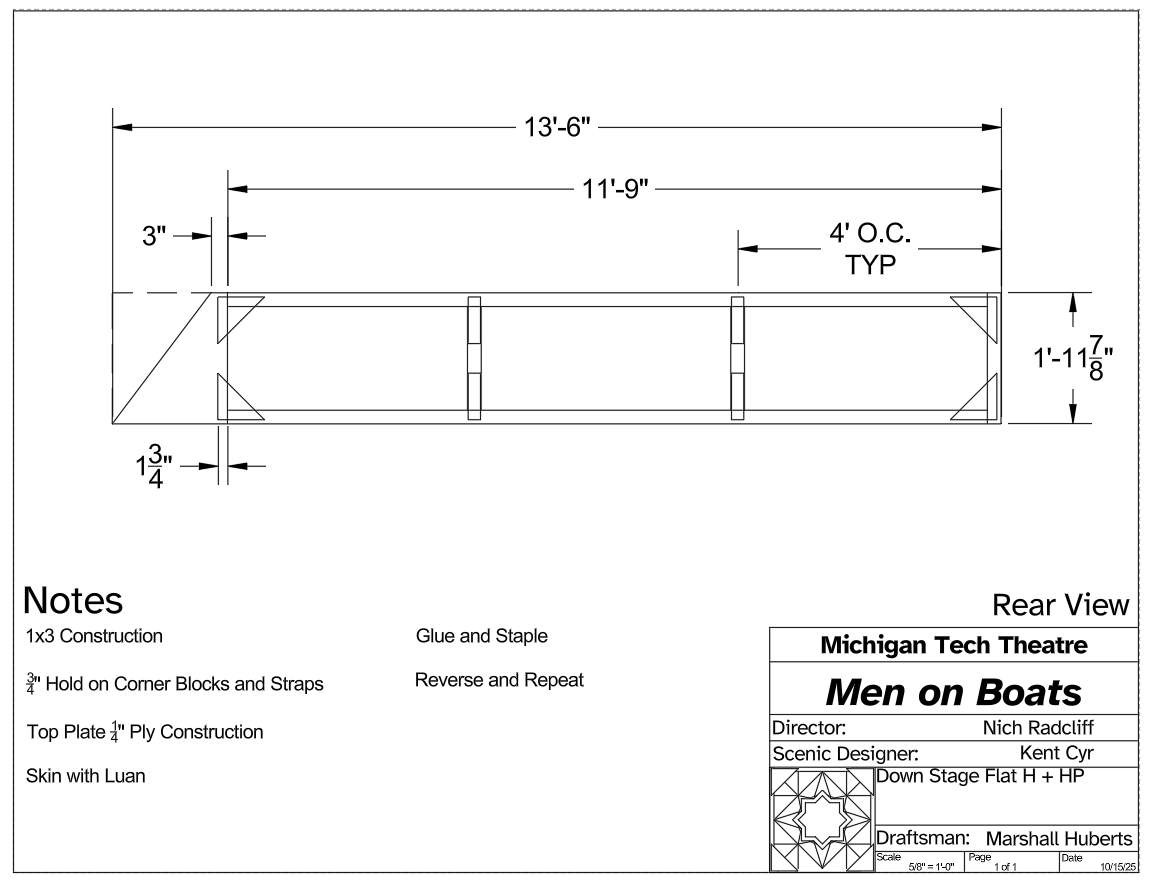

Technical blueprint of a stage set for Michigan Tech Theatre's production of 'Men on Boats,' including measurements and construction notes.

Broadway style scenic flats with plywood top plate to create shape. All skinned with luan and covered with muslin fabric for a smooth projection surface.

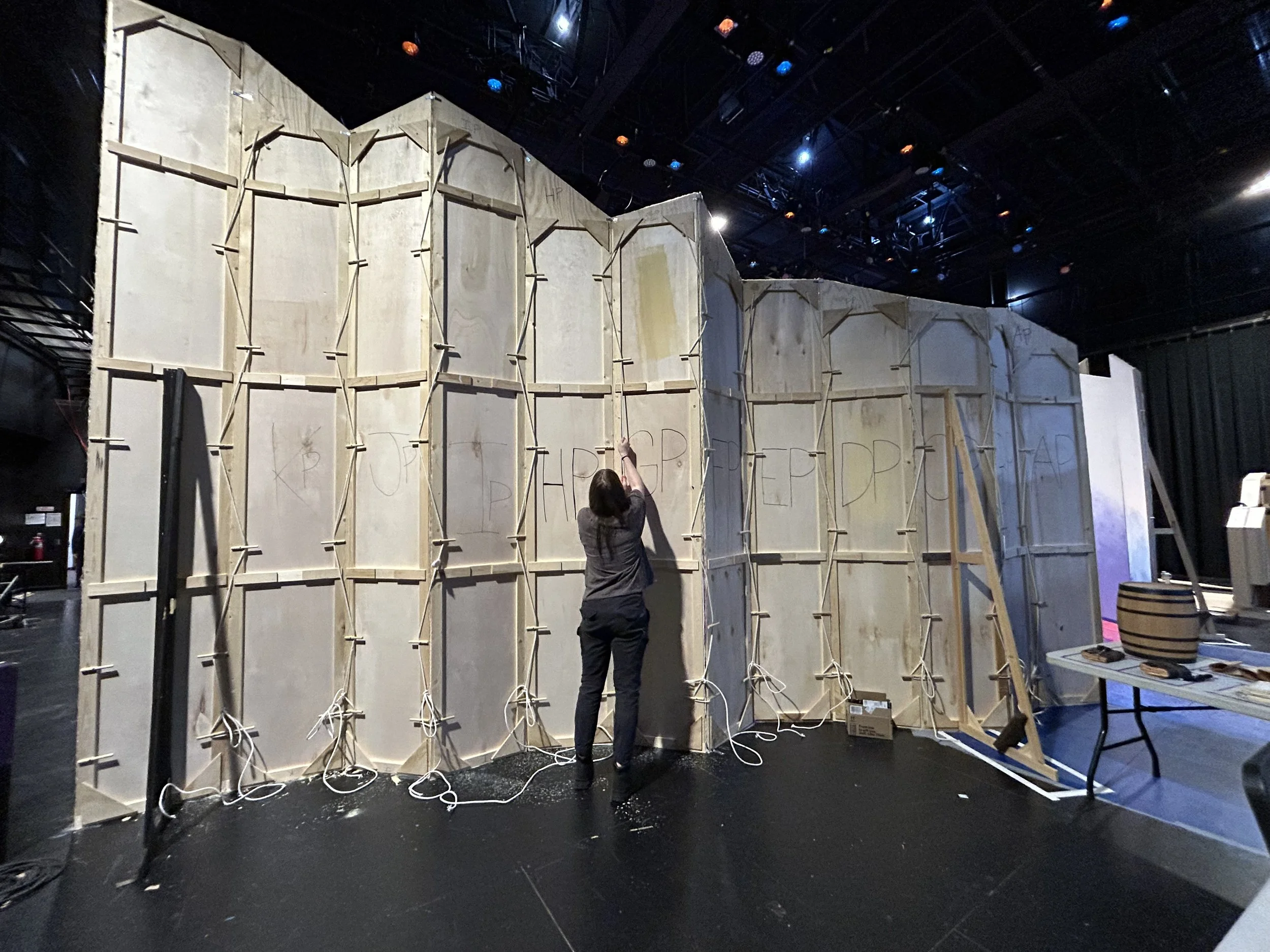

A woman working on a large wooden structure with vertical and horizontal supports, possibly creating a set or backdrop, in a dimly lit room with stage equipment and tables nearby.

Flat Installation

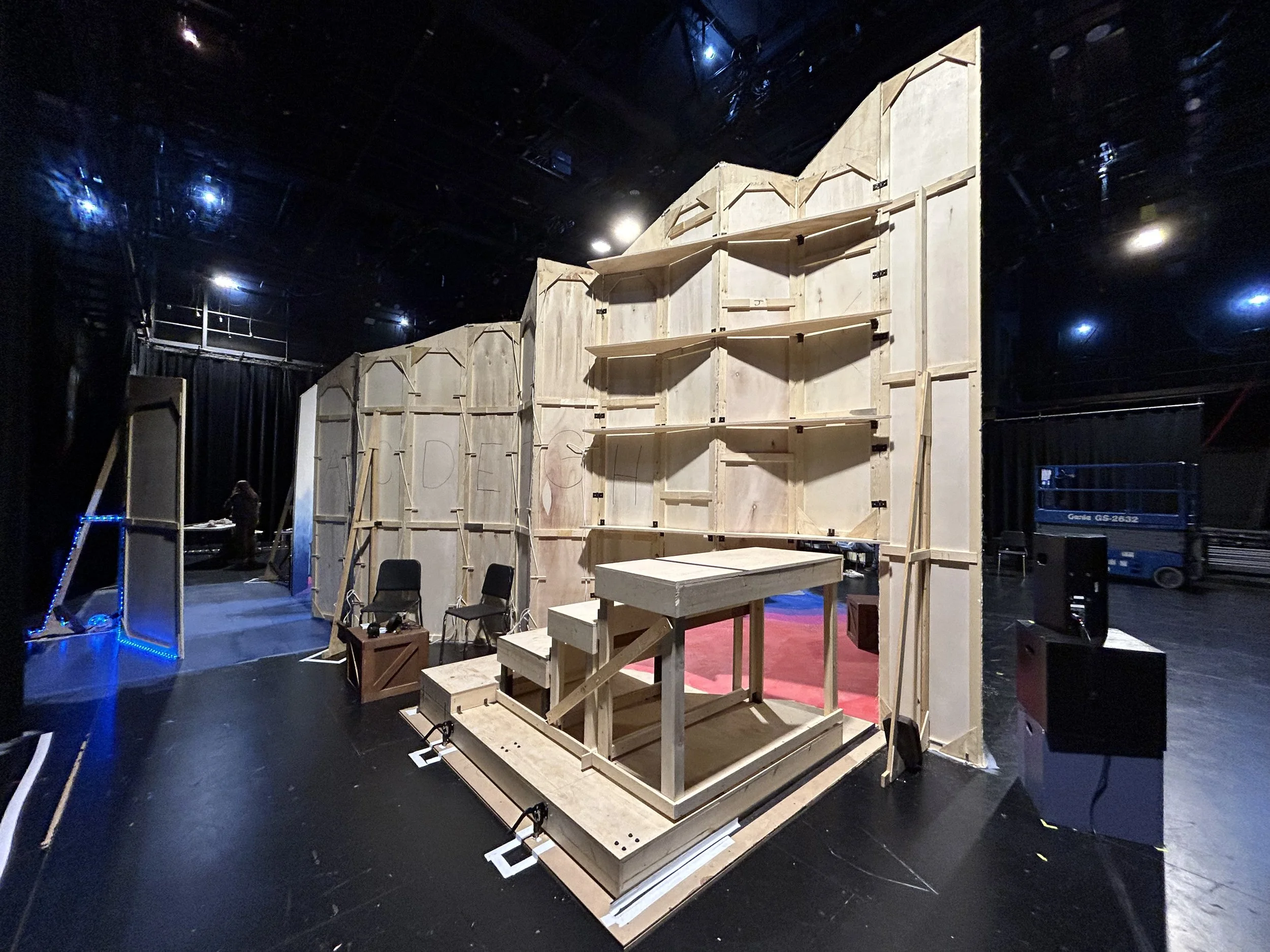

The image shows a theatrical stage set under construction with wooden panels and scaffolding, and black curtains in the background.

All standing flats installed using sash and cleat methodology, using custom made cleats made from wooden dowel rod

Meanwhile the hanging flats where attached together before installation by the use of plywood ribs to maintain shape, then hung with pin hinges.

Two young people sitting on a pink platform, with a colorful gallery wall behind them, one wearing a purple jacket and black hat, the other wearing a tan hat and red pants, in a museum or art gallery.

Photograph By Chris Plummer

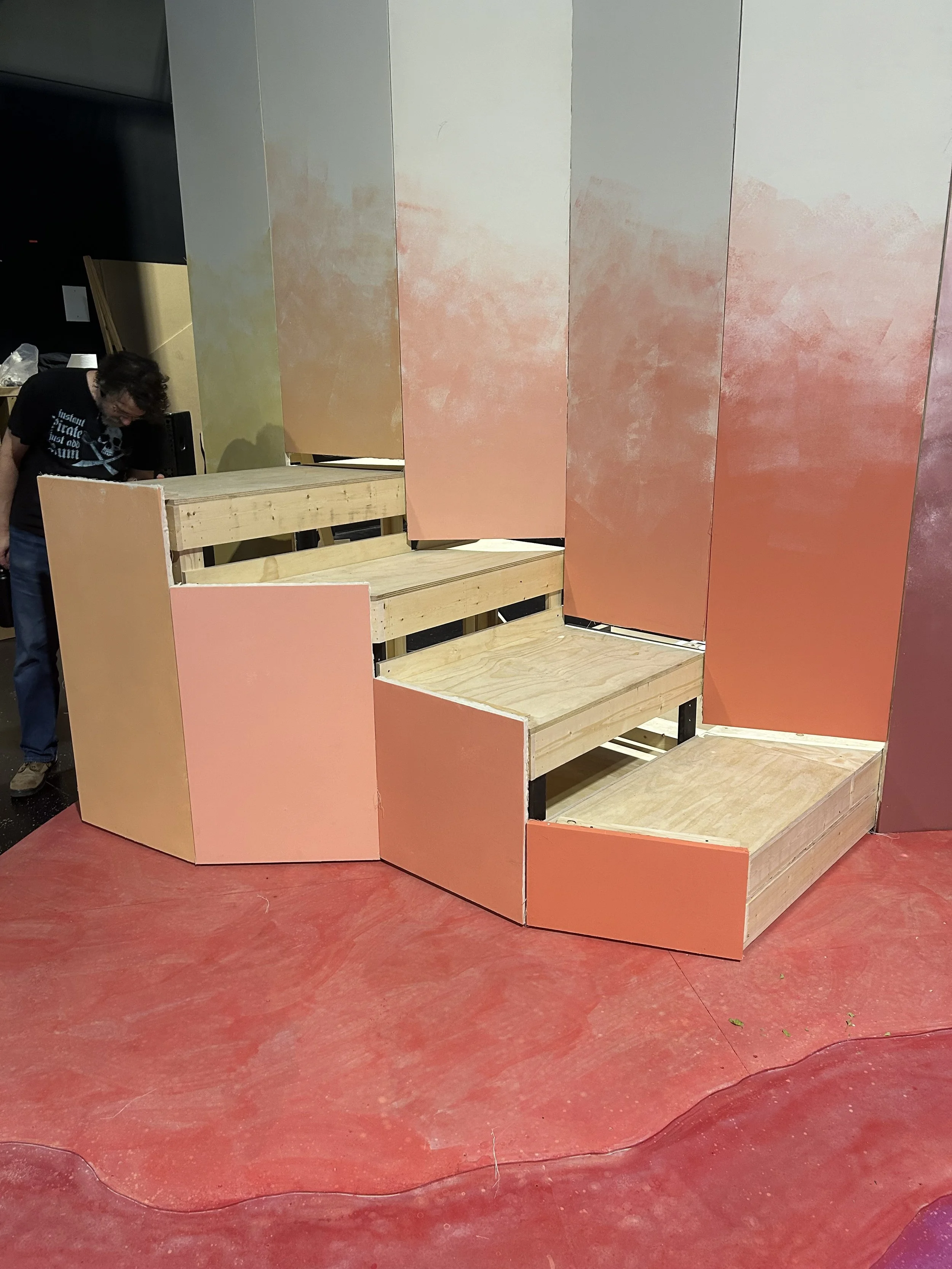

A partially constructed stage with pink panels and wooden steps, with a person working on the left side.

“Cliff” Rolling Unit

Rolling unit that when retracted seamlessly integrated flush with the wall. 1x6 and plywood construction mounted on straight casters using angle iron and UHMW tape as guide rails
